Group Case Sensitivity Issues

Keycloak treats group names as case-sensitive, which can lead to unexpected behavior when managing groups through keycloak-config-cli. Understanding how case sensitivity affects group operations is essential for avoiding duplicate groups, failed imports, and inconsistent group hierarchies.

Related issues: #1019

The Problem

Users encounter case sensitivity issues with group management because: - Keycloak treats "Developers" and "developers" as different groups - Configuration files may have inconsistent capitalization - Exports from different sources use different casing conventions - Group paths are case-sensitive at every level - Group membership assignments can fail due to case mismatches - Duplicate groups created unintentionally due to case variations - It's unclear whether groups should be referenced by name or path - Search and lookup operations are case-sensitive

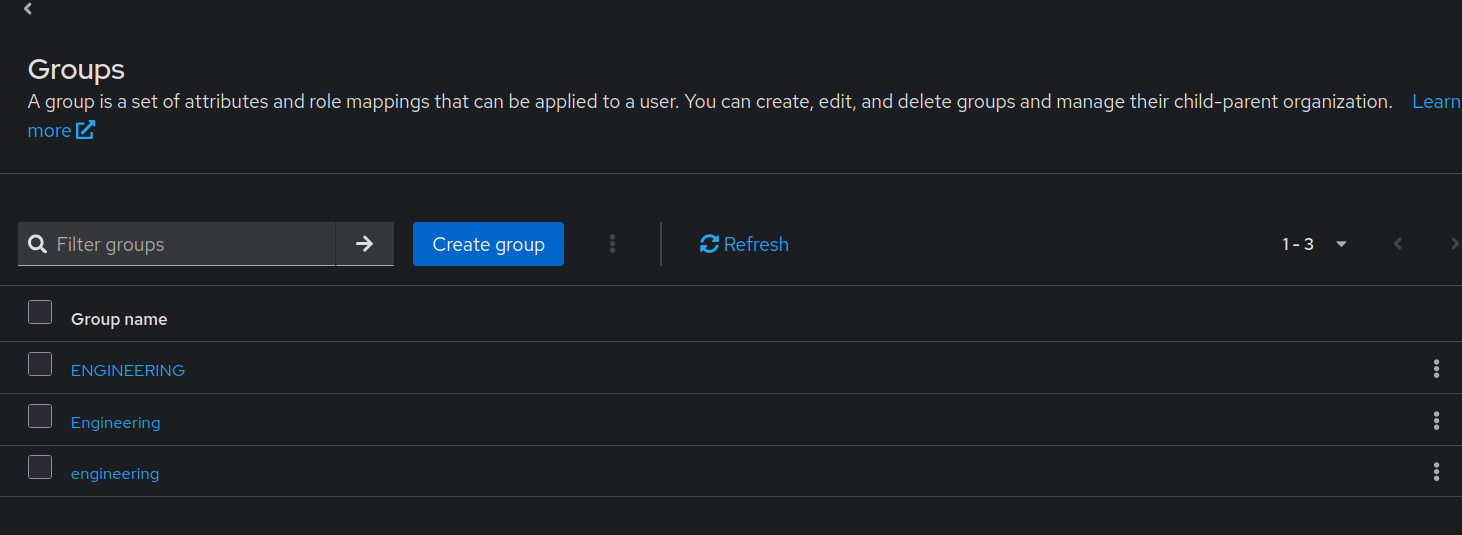

Visual Example: Duplicate Groups Due to Case

As shown above, Keycloak creates separate groups for "Engineering", "engineering", and "ENGINEERING" - each is treated as a completely different group.

Understanding Case Sensitivity in Groups

How Keycloak Handles Group Names

Keycloak's group system is strictly case-sensitive:

Name Matching
"Engineering" ≠ "engineering" ≠ "ENGINEERING"
Each variation is a separate, distinct group
No case-insensitive matching available
Path Matching
"/Engineering/Backend" ≠ "/engineering/backend"
Every component in path must match exactly
Paths are constructed from group names
Group Operations
Create, update, delete all use exact case matching
Group lookup fails if case doesn't match
Membership assignments require exact path match

The Error

Typical Error Scenarios

Scenario 1: Duplicate Groups Due to Case

{
  "realm": "myrealm",
  "groups": [
    {
      "name": "Developers",
      "path": "/Developers"
    },
    {
      "name": "developers",
      "path": "/developers"
    }
  ]
}

Result: - Two separate groups created - "/Developers" and "/developers" both exist - Users may be assigned to wrong group - Confusion about which group to use

Duplicate groups with different cases in Keycloak

Scenario 2: Group Not Found Due to Case Mismatch

Step 2: User Created Without Groups

Create a user without any group assignments:

{
  "realm": "master",
  "users": [
    {
      "username": "john.doe",
      "email": "john.doe@example.com",
      "firstName": "John",
      "lastName": "Doe",
      "enabled": true
    }
  ]
}

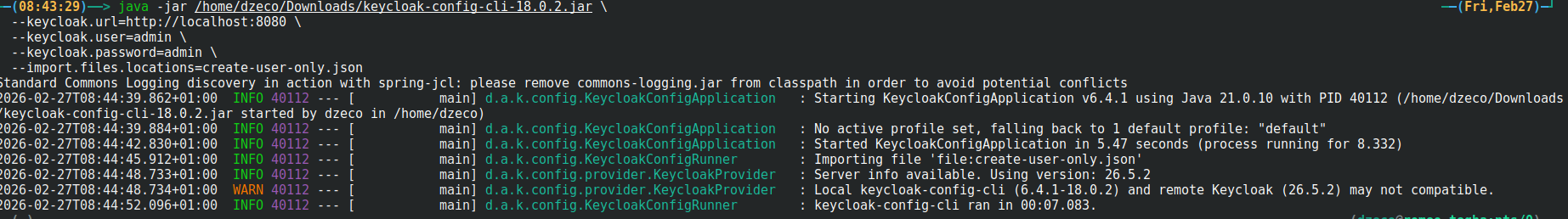

step1

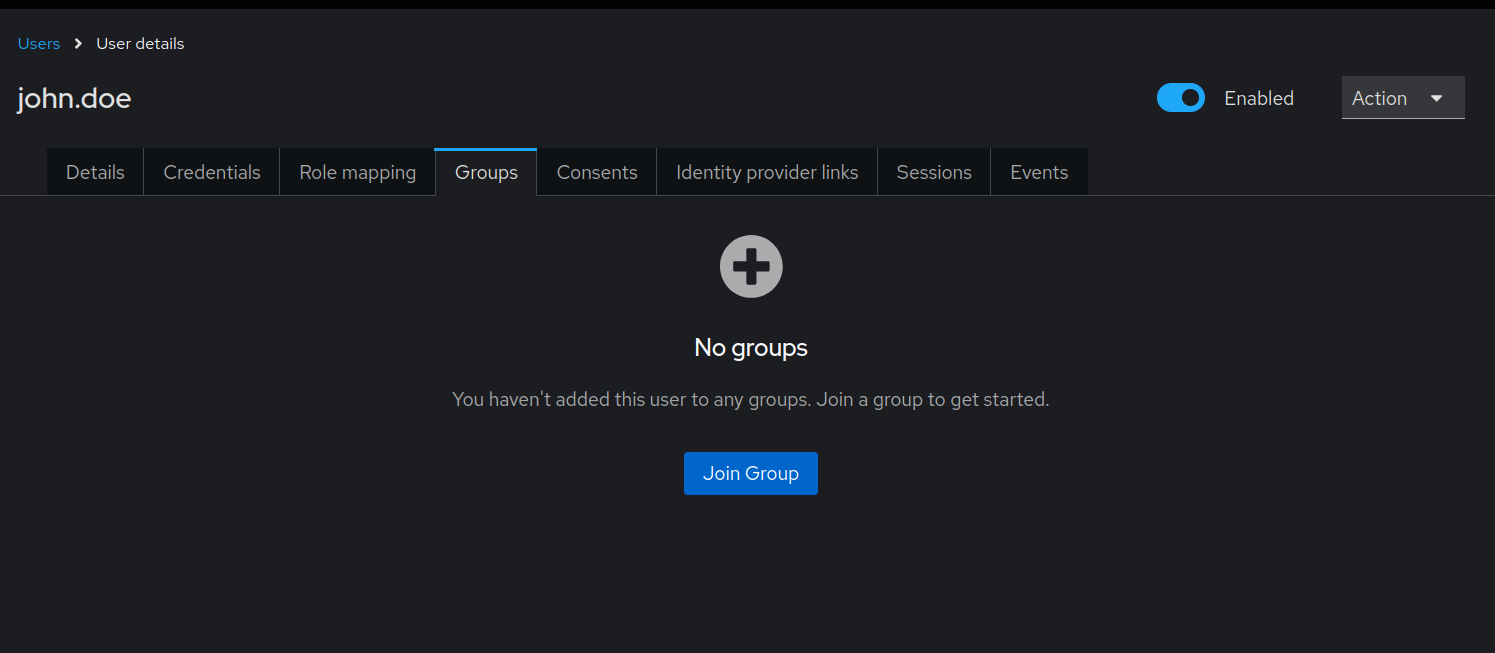

step2 User created without groups

User john.doe created successfully but has no group memberships yet.

Step 3: Attempting to Add User to Wrong Case Group

Now attempt to assign the user to the group using incorrect case (lowercase "e"):

{
  "realm": "master",
  "users": [
    {
      "username": "john.doe",
      "groups": ["/engineering"]
    }
  ]
}

Import command:

java -jar keycloak-config-cli.jar \
  --keycloak.url=http://localhost:8080 \
  --keycloak.user=admin \
  --keycloak.password=admin \
  --import.files.locations=add-to-wrong-group.json

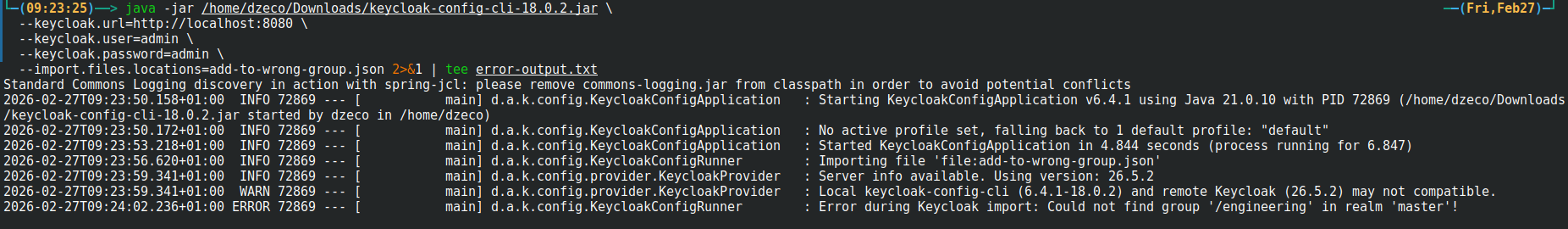

Error in terminal:

ERROR ... Error during Keycloak import: Create method returned status Internal Server Error (Code: 500)
ERROR ... Failed to add user 'john.doe' to group '/engineering'
ERROR ... Group '/engineering' not found

step1

Import fails because the group path case doesn't match.

Step 4: Verify Failure in Keycloak UI

After the failed import, check the user in Keycloak Admin Console:

User still has no groups after failed import

The user remains without any group memberships, proving the import failed due to case mismatch.

Key observation: The user exists, but the group assignment failed because: - Config referenced: /engineering (lowercase) - Actual group path: /Engineering (capital E) - Keycloak requires exact case match

Step 5: Correct Import with Proper Case

Using the correct case resolves the issue:

{
  "realm": "master",
  "users": [
    {
      "username": "john.doe",
      "groups": ["/Engineering"]
    }
  ]
}

Import command:

java -jar keycloak-config-cli.jar \
  --keycloak.url=http://localhost:8080 \
  --keycloak.user=admin \
  --keycloak.password=admin \
  --import.files.locations=add-to-correct-group.json

Success in terminal:

INFO ... Import successful
INFO ... User 'john.doe' added to group '/Engineering'

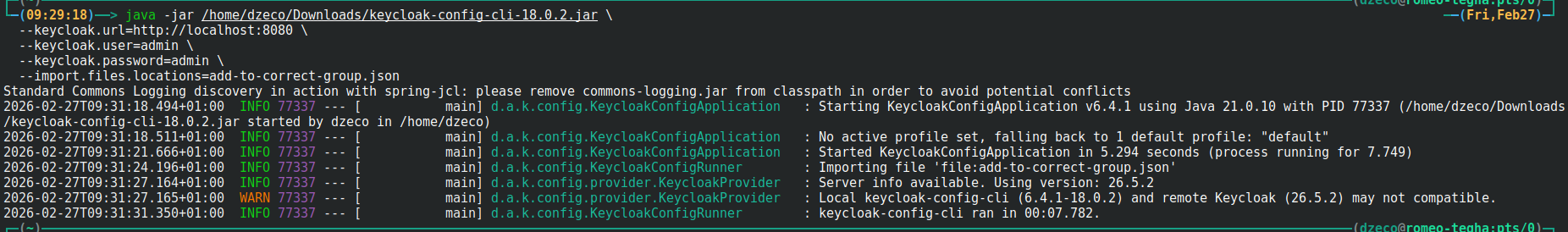

Terminal showing successful import

Import succeeds when using exact case match.

Step 6: Verify Success in Keycloak UI

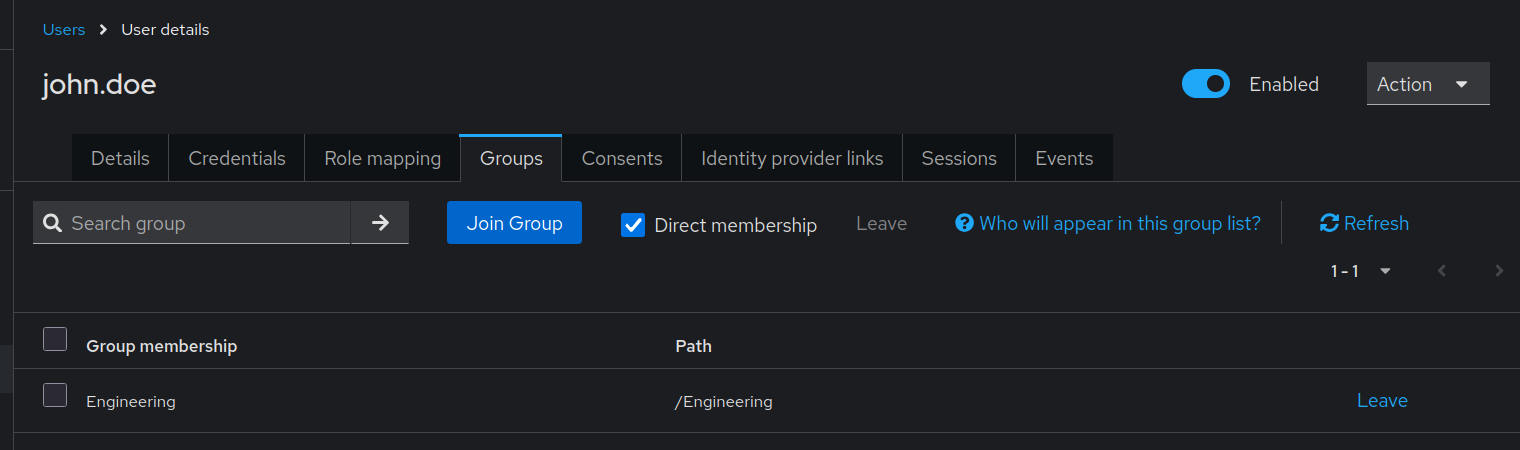

User successfully assigned to Engineering group

User john.doe is now successfully a member of the Engineering group (with capital E).

Why it works: The group path in the configuration (/Engineering) matches the actual group path exactly, including case.

Scenario 3: Subgroup Hierarchy Mismatch

{
  "groups": [
    {
      "name": "Engineering",
      "path": "/Engineering",
      "subGroups": [
        {
          "name": "Backend",
          "path": "/Engineering/backend"
        }
      ]
    }
  ]
}

Error:

Invalid subgroup path: /Engineering/backend
Expected: /Engineering/Backend

Why it fails: Parent path is "/Engineering" but subgroup path uses lowercase "backend"

Scenario 4: User Group Assignment Failure

{
  "groups": [
    {
      "name": "Developers",
      "path": "/Developers"
    }
  ],
  "users": [
    {
      "username": "jane.doe",
      "groups": ["/developers"]
    }
  ]
}

Error:

Failed to add user 'jane.doe' to group '/developers'
Group not found

Solutions

Solution 1: Establish Naming Convention (Recommended)

Strategy: Define and enforce consistent case convention across all configurations.

Convention Options:

Option A: PascalCase (Recommended)

href="#__codelineno-12-1">{ "groups": [ { "name": "Engineering", "path": "/Engineering", "subGroups": [ { "name": "Backend", "path": "/Engineering/Backend" }, { "name": "Frontend", "path": "/Engineering/Frontend" } ] }, { "name": "Sales", "path": "/Sales", "subGroups": [ { "name": "Enterprise", "path": "/Sales/Enterprise" }, { "name": "SmallBusiness", "path": "/Sales/SmallBusiness" } ] } ] }

Benefits: - Clear, readable - Professional appearance - Common in organizational structures - Easy to distinguish from usernames

Option B: lowercase

{
  "groups": [
    {
      "name": "engineering",
      "path": "/engineering",
      "subGroups": [
        {
          "name": "backend",
          "path": "/engineering/backend"
        },
        {
          "name": "frontend",
          "path": "/engineering/frontend"
        }
      ]
    },
    {
      "name": "sales",
      "path": "/sales"
    }
  ]
}

Benefits: - Simple, consistent - No capitalization confusion - Easy to type - Matches many Unix/Linux conventions

Option C: kebab-case

{
  "groups": [
    {
      "name": "engineering-team",
      "path": "/engineering-team",
      "subGroups": [
        {
          "name": "backend-team",
          "path": "/engineering-team/backend-team"
        },
        {
          "name": "frontend-team",
          "path": "/engineering-team/frontend-team"
        }
      ]
    }
  ]
}

Benefits: - URL-friendly - Clear word separation - No space ambiguity

Solution 2: Document Group Names

Create a group registry:

# GROUP_REGISTRY.md

## Group Naming Convention
- Use PascalCase for all group names
- Use descriptive, full names (not abbreviations)
- Follow hierarchy: Department → Team → Role

## Defined Groups

### Engineering Department
- Path: `/Engineering`
- Subgroups:
  - `/Engineering/Backend`
  - `/Engineering/Frontend`
  - `/Engineering/DevOps`
  - `/Engineering/QA`

### Sales Department
- Path: `/Sales`
- Subgroups:
  - `/Sales/Enterprise`
  - `/Sales/SMB`
  - `/Sales/Partners`

### Support
- Path: `/Support`
- Subgroups:
  - `/Support/L1`
  - `/Support/L2`
  - `/Support/L3`

Reference this in all configuration files:

realm: "corporate"

groups:
  - name: "Engineering"
    path: "/Engineering"

Solution 3: Use Consistent Paths Everywhere

Rule: Always reference groups by their exact path as created.

Configuration:

realm: "myrealm"

groups:
  - name: "Engineering"
    path: "/Engineering"
    attributes:
      department: ["engineering"]
    subGroups:
      - name: "Backend"
        path: "/Engineering/Backend"
      - name: "Frontend"
        path: "/Engineering/Frontend"

users:
  - username: "john.doe"
    email: "john@example.com"
    groups:
      - "/Engineering/Backend"

  - username: "jane.smith"
    email: "jane@example.com"
    groups:
      - "/Engineering/Frontend"

roles:
  realm:
    - name: "developer"
      description: "Developer role"

groupRoleMappings:
  "/Engineering/Backend":
    - "developer"
  "/Engineering/Frontend":
    - "developer"

Successful group assignment with correct case

Solution 5: Normalize Groups on Export

When exporting from Keycloak, normalize case:

#!/usr/bin/env python3
"""
Normalize group names to consistent case in exported config.
"""
import yaml
import sys

def normalize_groups(config_file, output_file, case_style='pascal'):
    """Normalize group names to consistent case."""

    with open(config_file) as f:
        config = yaml.safe_load(f)

    def normalize_name(name, style):
        if style == 'pascal':
            return ''.join(word.capitalize() for word in name.split())
        elif style == 'lower':
            return name.lower()
        elif style == 'upper':
            return name.upper()
        return name

    def normalize_group(group):
        original_name = group['name']
        normalized_name = normalize_name(original_name, case_style)
        group['name'] = normalized_name

        path_parts = group['path'].split('/')
        path_parts[-1] = normalized_name
        group['path'] = '/'.join(path_parts)

        if 'subGroups' in group:
            for subgroup in group['subGroups']:
                normalize_group(subgroup)

        return group

    if 'groups' in config:
        config['groups'] = [normalize_group(g) for g in config['groups']]

    if 'users' in config:
        for user in config['users']:
            if 'groups' in user:
                user['groups'] = [
                    '/'.join(normalize_name(part, case_style)
                            for part in path.split('/') if part)
                    for path in user['groups']
                ]

    with open(output_file, 'w') as f:
        yaml.dump(config, f, default_flow_style=False)

    print(f" Normalized groups in {config_file} → {output_file}")

if __name__ == "__main__":
    if len(sys.argv) < 3:
        print("Usage: normalize_groups.py <input.yaml> <output.yaml> [pascal|lower|upper]")
        sys.exit(1)

    case_style = sys.argv[3] if len(sys.argv) > 3 else 'pascal'
    normalize_groups(sys.argv[1], sys.argv[2], case_style)

Complete Group Configuration Examples

Example 1: Organizational Hierarchy (PascalCase)

realm: "corporate"
enabled: true

groups:
  - name: "Engineering"
    path: "/Engineering"
    attributes:
      department: ["Engineering"]
      costCenter: ["ENG-001"]
    subGroups:
      - name: "Backend"
        path: "/Engineering/Backend"
        attributes:
          team: ["Backend"]

      - name: "Frontend"
        path: "/Engineering/Frontend"
        attributes:
          team: ["Frontend"]

      - name: "DevOps"
        path: "/Engineering/DevOps"
        attributes:
          team: ["DevOps"]

      - name: "QA"
        path: "/Engineering/QA"
        attributes:
          team: ["QA"]

  - name: "Sales"
    path: "/Sales"
    attributes:
      department: ["Sales"]
      costCenter: ["SALES-001"]
    subGroups:
      - name: "Enterprise"
        path: "/Sales/Enterprise"
        attributes:
          segment: ["Enterprise"]

      - name: "SMB"
        path: "/Sales/SMB"
        attributes:
          segment: ["Small-Medium Business"]

  - name: "Support"
    path: "/Support"
    attributes:
      department: ["Support"]
      costCenter: ["SUP-001"]
    subGroups:
      - name: "L1"
        path: "/Support/L1"

      - name: "L2"
        path: "/Support/L2"

      - name: "L3"
        path: "/Support/L3"

users:
  - username: "john.doe"
    email: "john@corporate.com"
    firstName: "John"
    lastName: "Doe"
    enabled: true
    groups:
      - "/Engineering/Backend"

  - username: "jane.smith"
    email: "jane@corporate.com"
    firstName: "Jane"
    lastName: "Smith"
    enabled: true
    groups:
      - "/Engineering/Frontend"

  - username: "bob.johnson"
    email: "bob@corporate.com"
    firstName: "Bob"
    lastName: "Johnson"
    enabled: true
    groups:
      - "/Sales/Enterprise"

roles:
  realm:
    - name: "developer"
      description: "Developer role"
    - name: "sales-rep"
      description: "Sales representative"
    - name: "support-agent"
      description: "Support agent"

clients:
  - clientId: "corporate-app"
    enabled: true
    defaultClientScopes:
      - "groups"

Example 2: Flat Structure (lowercase)

realm: "development"
enabled: true

groups:
  - name: "developers"
    path: "/developers"
    attributes:
      environment: ["dev"]

  - name: "testers"
    path: "/testers"
    attributes:
      environment: ["dev"]

  - name: "admins"
    path: "/admins"
    attributes:
      environment: ["dev"]

users:
  - username: "dev1"
    email: "dev1@dev.local"
    enabled: true
    groups:
      - "/developers"

  - username: "tester1"
    email: "tester1@dev.local"
    enabled: true
    groups:
      - "/testers"

Example 3: Multi-Level Hierarchy (kebab-case)

realm: "saas-platform"
enabled: true

groups:
  - name: "tenant-admin"
    path: "/tenant-admin"
    attributes:
      role-type: ["admin"]

  - name: "tenant-user"
    path: "/tenant-user"
    attributes:
      role-type: ["user"]
    subGroups:
      - name: "premium-user"
        path: "/tenant-user/premium-user"
        attributes:
          subscription: ["premium"]

      - name: "free-user"
        path: "/tenant-user/free-user"
        attributes:
          subscription: ["free"]

users:
  - username: "admin-user"
    email: "admin@example.com"
    enabled: true
    groups:
      - "/tenant-admin"

  - username: "premium-customer"
    email: "premium@example.com"
    enabled: true
    groups:
      - "/tenant-user/premium-user"

Common Pitfalls

1. Inconsistent Case Across Files

Problem:

File 1: groups.yaml

groups:
  - name: "Engineering"
    path: "/Engineering"

File 2: users.yaml

users:
  - username: "john.doe"
    groups:
      - "/engineering"

Solution: Use consistent case in all files:

groups:
  - name: "Engineering"
    path: "/Engineering"

users:
  - username: "john.doe"
    groups:
      - "/Engineering"

2. Copy-Paste Errors with Case

Problem:

groups:
  - name: "Backend"
    path: "/Engineering/Backend"

  - name: "Frontend"
    path: "/Engineering/backend"

Solution: Always verify path components match group names:

groups:
  - name: "Backend"
    path: "/Engineering/Backend"

  - name: "Frontend"
    path: "/Engineering/Frontend"

3. Exported Groups with Mixed Case

Problem: Exporting from Keycloak UI where users created groups inconsistently

Export result:

groups:
  - name: "developers"
  - name: "Developers"
  - name: "DEVELOPERS"

Solution: Normalize before importing:

python normalize_groups.py exported.yaml normalized.yaml pascal

java -jar keycloak-config-cli.jar \
  --import.files.locations=normalized.yaml

4. Path vs Name Confusion

Problem:

groups:
  - name: "Backend"
    path: "/Engineering/backend"

Rule: Last component of path must match name exactly:

groups:
  - name: "Backend"
    path: "/Engineering/Backend"

5. Subgroup Path Construction

Problem:

groups:
  - name: "Engineering"
    path: "/Engineering"
    subGroups:
      - name: "Backend"
        path: "/Backend"

Solution: Subgroup paths must include full parent path:

groups:
  - name: "Engineering"
    path: "/Engineering"
    subGroups:
      - name: "Backend"
        path: "/Engineering/Backend"

Best Practices

Choose One Case Convention and Stick to It

   groups:
     - name: "Engineering"
     - name: "Sales"
     - name: "Support"

Document Your Convention Create a GROUP_NAMING.md file explaining your chosen convention

Validate Before Every Import

   python validate_groups.py config.yaml && \
     java -jar keycloak-config-cli.jar \
       --import.files.locations=config.yaml

Use Configuration Templates

   - name: "TEMPLATE_NAME"
     path: "/TEMPLATE_PATH"
     attributes:
       department: ["TEMPLATE_DEPT"]

Avoid Abbreviations

   - name: "Engineering"
   - name: "Backend"

Use Meaningful Hierarchies

   /Engineering/Backend/APIs
   /Engineering/Frontend/WebApp
   /Sales/Enterprise/EMEA

Test with Exact Case

   curl "http://localhost:8080/admin/realms/myrealm/groups" \
     -H "Authorization: Bearer $TOKEN" | \
     jq '.[] | select(.path == "/Engineering")'

Keep Group Names Human-Readable

   - name: "Backend Engineers"
     path: "/Engineering/Backend Engineers"

Troubleshooting

Group Not Found Despite Existing

Symptom: Error says group doesn't exist, but it's visible in Admin Console

Diagnosis:

curl -s "http://localhost:8080/admin/realms/myrealm/groups" \
  -H "Authorization: Bearer $TOKEN" | \
  jq '.[] | .path'

Your config:

users:
  - username: "john.doe"
    groups:
      - "/engineering"

Solution: Use exact case:

users:
  - username: "john.doe"
    groups:
      - "/Engineering"

Duplicate Groups Created

Symptom: Multiple groups with similar names

Example:

/Developers
/developers
/DEVELOPERS

Diagnosis:

curl -s "http://localhost:8080/admin/realms/myrealm/groups" \
  -H "Authorization: Bearer $TOKEN" | \
  jq '.[] | select(.name | test("(?i)developers"))'

Solution: 1. Choose canonical version: /Developers 2. Move users from duplicates to canonical 3. Delete duplicate groups 4. Update all configs to use canonical version

groups:
  - name: "Developers"
    path: "/Developers"

Subgroup Path Mismatch

Symptom: Subgroup creation fails

Error:

Invalid subgroup path: /Engineering/backend
Parent path: /Engineering
Expected: /Engineering/Backend

Solution: Fix subgroup path to match name:

groups:
  - name: "Engineering"
    path: "/Engineering"
    subGroups:
      - name: "Backend"
        path: "/Engineering/Backend"

User Group Assignment Fails

Symptom: User creation succeeds but not added to group

Error:

Warning: Failed to add user 'john.doe' to group '/engineering/backend'
Group not found

Solution: Check exact group path:

curl -s "http://localhost:8080/admin/realms/myrealm/groups" \
  -H "Authorization: Bearer $TOKEN" | \
  jq -r '.[] | .path' | grep -i backend

Update config with exact path:

users:
  - username: "john.doe"
    groups:
      - "/Engineering/Backend"

Configuration Options

--import.validate=true

--import.remote-state.enabled=true

Consequences

When dealing with case sensitivity in group management:

Exact Match Required: Group names and paths must match exactly, including case
No Case-Insensitive Lookup: Keycloak provides no case-insensitive group search
Duplicates Possible: Different cases create separate groups
Path Components Matter: Every level of hierarchy must match exactly
User Assignment Fragile: Single character case difference causes failure
Convention Critical: Team must agree on and follow naming convention
