LDAP User Creation Conflicts

When a Keycloak realm is configured with LDAP user federation, attempting to create local users directly through keycloak-config-cli or the Admin API often results in 400 Bad Request errors. Understanding the relationship between LDAP federation and local user management is essential for avoiding conflicts and properly managing users in LDAP-enabled realms.

Related issues: #1291

The Problem

Users encounter 400 errors when creating users in LDAP-enabled realms because: - LDAP user federation makes the realm read-only for user management - Local user creation conflicts with LDAP as the source of truth - Keycloak attempts to create users in LDAP, which may fail due to permissions or configuration - It's unclear whether users should be created in LDAP or Keycloak - Error messages don't clearly indicate LDAP is the cause - Existing configuration files assume local user management - Federated users have different attribute handling than local users

Understanding LDAP User Federation

How LDAP Federation Works

When LDAP user federation is enabled:

  1. LDAP as Source of Truth
  2. User data is stored in LDAP directory
  3. Keycloak synchronizes users from LDAP

  4. Authentication happens against LDAP

  5. Read-Only User Management

  6. Users cannot be created directly in Keycloak
  7. User modifications sync back to LDAP (if configured)

  8. Some attributes become read-only

  9. Synchronization

  10. Full sync: Imports all LDAP users
  11. Changed sync: Imports only modified users
  12. Periodic or on-demand sync

The Error

LDAP Configuration Example

Import LDAP configuration:

{
  "realm": "master",
  "components": {
    "org.keycloak.storage.UserStorageProvider": [
      {
        "name": "test-ldap",
        "providerId": "ldap",
        "config": {
          "enabled": ["true"],
          "priority": ["0"],
          "vendor": ["Active Directory"],
          "connectionUrl": ["ldap://ldap.example.com:389"],
          "bindDn": ["CN=keycloak,CN=Users,DC=example,DC=com"],
          "bindCredential": ["password123"],
          "usersDn": ["CN=Users,DC=example,DC=com"],
          "usernameLDAPAttribute": ["sAMAccountName"],
          "rdnLDAPAttribute": ["cn"],
          "uuidLDAPAttribute": ["objectGUID"],
          "editMode": ["READ_ONLY"]
        }
      }
    ]
  }
}

step1 LDAP configuration in READ_ONLY mode with connection error

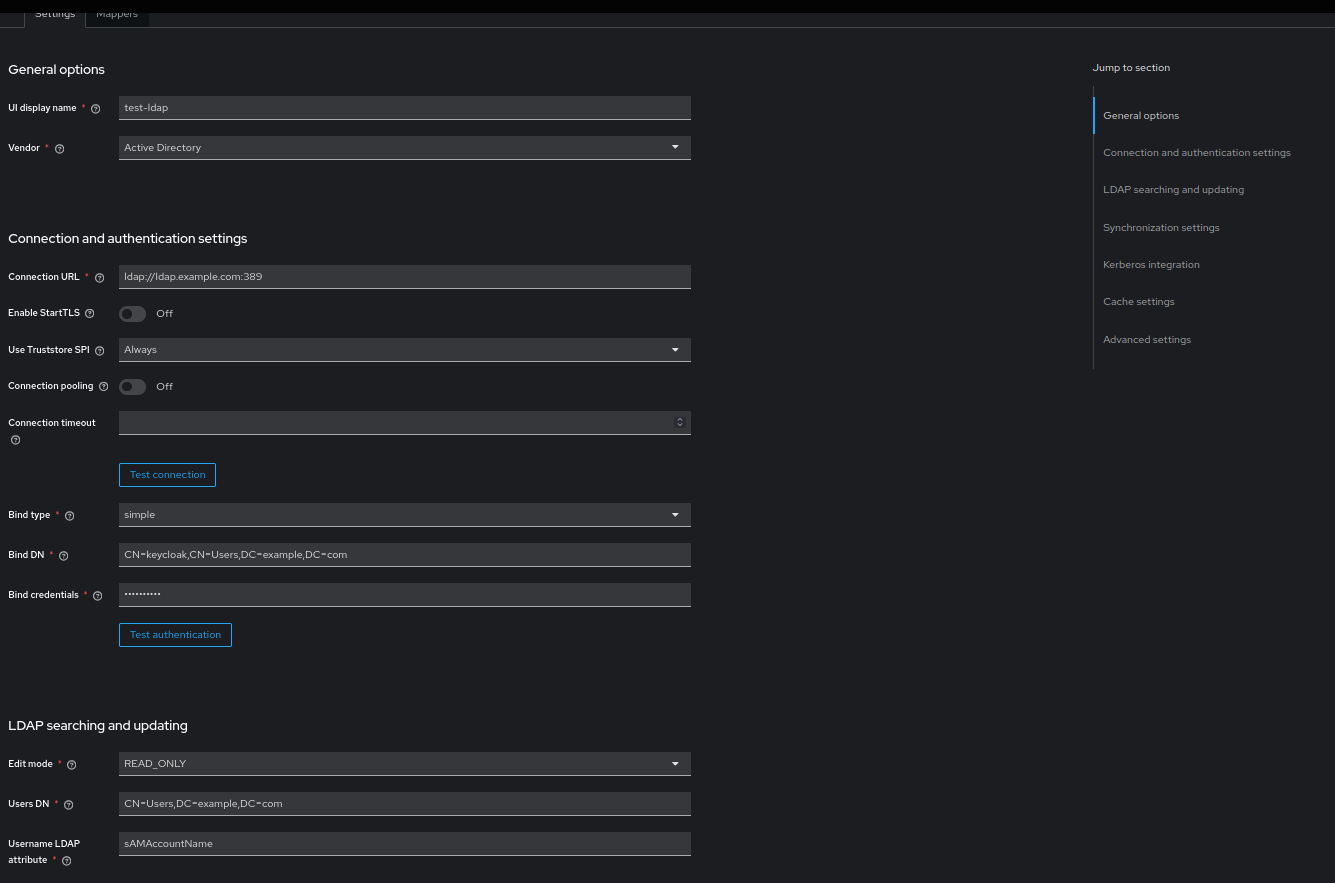

step2 LDAP configuration in READ_ONLY mode with connection error

LDAP user federation configured with READ_ONLY edit mode. Connection test shows "Error when trying to connect to LDAP: 'UnknownHost'" because ldap.example.com doesn't exist. This demonstrates a common LDAP configuration issue.

Typical Error Message

Attempting to create a user:

java -jar keycloak-config-cli.jar \
  --keycloak.url=http://localhost:8080 \
  --keycloak.user=admin \
  --keycloak.password=admin \
  --import.files.locations=user-with-ldap.json

Configuration:

{
  "realm": "master",
  "users": [
    {
      "username": "john.doe",
      "email": "john.doe@example.com",
      "enabled": true,
      "firstName": "John",
      "lastName": "Doe"
    }
  ]
}

Error when attempting to create user in LDAP-enabled realm

Connection error when LDAP server is unreachable. In production, you might see "400 Bad Request: User creation failed - LDAP write operations not permitted" when LDAP is in READ_ONLY mode.

Common error messages:

400 Bad Request: User creation failed
Could not create user: LDAP write operations not permitted

Or:

400 Bad Request: Insufficient permissions to create user in LDAP

Or:

500 Internal Server Error: LDAP connection failed during user creation

Or:

Error when trying to connect to LDAP: 'UnknownHost'

Why It Happens

Result: Keycloak attempts to create the user, but: - LDAP may not allow user creation via Keycloak - LDAP write permissions may not be configured - User creation requires specific LDAP attributes not provided - LDAP connection may be read-only or unreachable

Solutions

Best Practice: Manage users in LDAP, not in Keycloak.

Configuration (No Local Users):

{
  "realm": "corporate",
  "enabled": true,
  "components": {
    "org.keycloak.storage.UserStorageProvider": [
      {
        "name": "corporate-ldap",
        "providerId": "ldap",
        "config": {
          "enabled": ["true"],
          "priority": ["0"],
          "vendor": ["Active Directory"],
          "connectionUrl": ["ldap://ldap.corporate.com:389"],
          "bindDn": ["CN=keycloak-service,CN=Users,DC=corporate,DC=com"],
          "bindCredential": ["password123"],
          "usersDn": ["CN=Users,DC=corporate,DC=com"],
          "userObjectClasses": ["person", "organizationalPerson", "user"],
          "usernameLDAPAttribute": ["sAMAccountName"],
          "rdnLDAPAttribute": ["cn"],
          "uuidLDAPAttribute": ["objectGUID"],
          "fullSyncPeriod": ["86400"],
          "changedSyncPeriod": ["3600"],
          "authType": ["simple"],
          "editMode": ["READ_ONLY"]
        }
      }
    ]
  }
}

Result: - Users are synchronized from LDAP automatically - No 400 errors on import - LDAP remains source of truth - User management happens in LDAP tools

Create users in LDAP using: - Active Directory Users and Computers - ldapadd command - LDAP management tools - Corporate user provisioning system

Solution 2: Separate Local and Federated Users

Scenario: Need both LDAP users and local service accounts.

Strategy: Use LDAP for regular users, local users for service accounts only.

{
  "realm": "master",
  "enabled": true,
  "components": {
    "org.keycloak.storage.UserStorageProvider": [
      {
        "name": "corporate-ldap",
        "providerId": "ldap",
        "config": {
          "enabled": ["true"],
          "priority": ["1"],
          "vendor": ["Active Directory"],
          "connectionUrl": ["ldap://ldap.corporate.com:389"],
          "bindDn": ["CN=keycloak-service,CN=Users,DC=corporate,DC=com"],
          "bindCredential": ["password123"],
          "usersDn": ["CN=Users,DC=corporate,DC=com"],
          "usernameLDAPAttribute": ["sAMAccountName"],
          "editMode": ["READ_ONLY"]
        }
      }
    ]
  },
  "users": [
    {
      "username": "keycloak-admin",
      "email": "admin@example.com",
      "firstName": "Keycloak",
      "lastName": "Admin",
      "enabled": true,
      "credentials": [
        {
          "type": "password",
          "value": "AdminPassword123",
          "temporary": false
        }
      ],
      "realmRoles": ["admin"]
    },
    {
      "username": "api-service-account",
      "email": "api@example.com",
      "firstName": "API",
      "lastName": "Service",
      "enabled": true,
      "serviceAccountClientId": "admin-cli"
    }
  ]
}

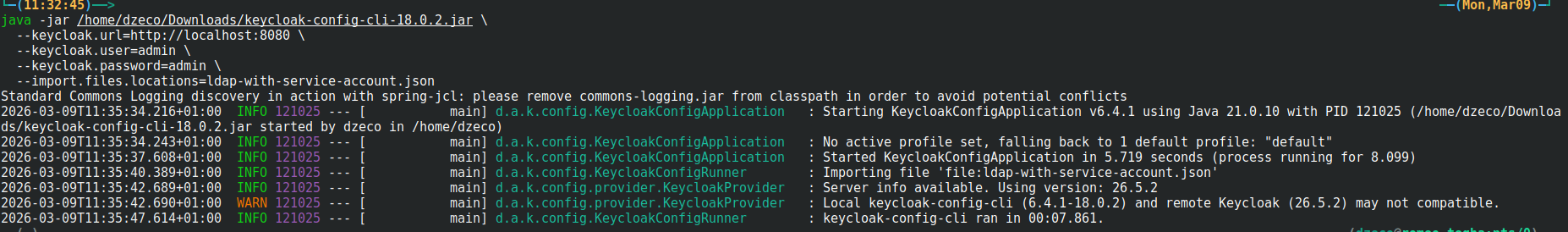

step1

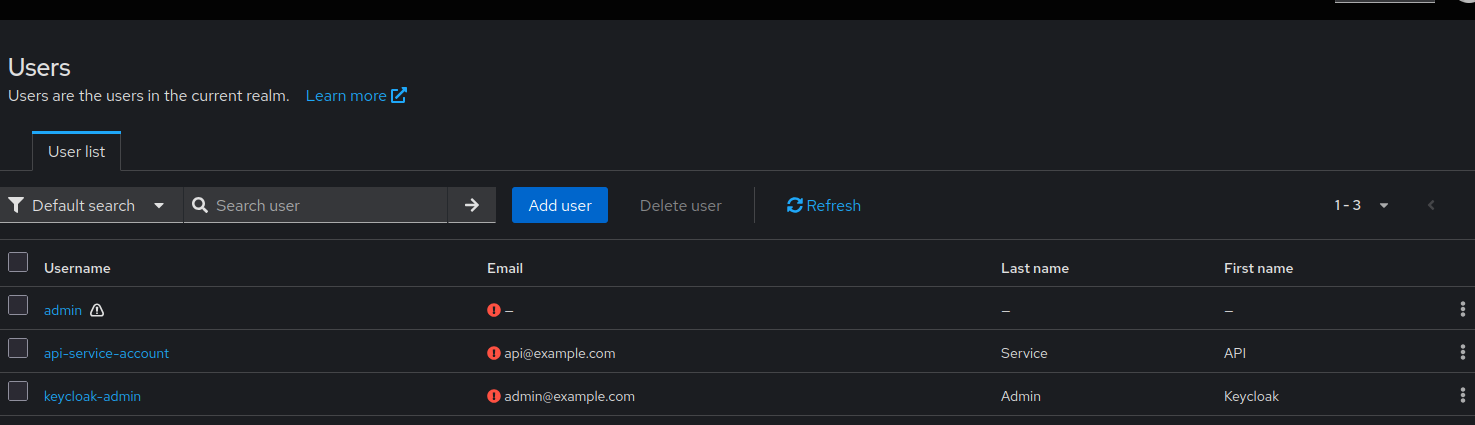

Local service accounts created alongside LDAP federation

step2

Local service accounts created alongside LDAP federation

Local service accounts (keycloak-admin, api-service-account) successfully created in the realm. These accounts are stored locally in Keycloak and don't conflict with LDAP federation.

Result: - LDAP users for human users (priority 1) - Local users for service accounts (priority 0 - default) - No conflicts between federation and local users - Local users not synced to LDAP

Important: Local service accounts won't authenticate against LDAP.

Solution 3: Configure LDAP for Write Operations

Scenario: Need Keycloak to create users in LDAP.

Requirements: - LDAP service account with write permissions - Proper DN structure configured - All required LDAP attributes mapped

{
  "realm": "corporate",
  "components": {
    "org.keycloak.storage.UserStorageProvider": [
      {
        "name": "corporate-ldap",
        "providerId": "ldap",
        "config": {
          "enabled": ["true"],
          "priority": ["0"],
          "vendor": ["Active Directory"],
          "connectionUrl": ["ldap://ldap.corporate.com:389"],
          "bindDn": ["CN=keycloak-admin,CN=Users,DC=corporate,DC=com"],
          "bindCredential": ["AdminPassword123"],
          "usersDn": ["CN=Users,DC=corporate,DC=com"],
          "userObjectClasses": ["person", "organizationalPerson", "user"],
          "usernameLDAPAttribute": ["sAMAccountName"],
          "rdnLDAPAttribute": ["cn"],
          "uuidLDAPAttribute": ["objectGUID"],
          "editMode": ["WRITABLE"],
          "firstNameLDAPAttribute": ["givenName"],
          "lastNameLDAPAttribute": ["sn"],
          "emailLDAPAttribute": ["mail"]
        }
      }
    ]
  },
  "users": [
    {
      "username": "john.doe",
      "email": "john.doe@corporate.com",
      "firstName": "John",
      "lastName": "Doe",
      "enabled": true,
      "credentials": [
        {
          "type": "password",
          "value": "TempPassword123",
          "temporary": true
        }
      ]
    }
  ]
}

Important Considerations: - LDAP service account needs appropriate permissions - All required LDAP attributes must be provided - Password policies must match LDAP requirements - User creation may still fail if LDAP has additional constraints

Solution 4: Skip Federated User Attributes

Scenario: Updating federated users but hitting read-only attribute errors.

Use the skip-attributes flag:

java -jar keycloak-config-cli.jar \
  --keycloak.url=http://localhost:8080 \
  --keycloak.user=admin \
  --keycloak.password=admin \
  --import.behaviors.skip-attributes-for-federated-user=true \
  --import.files.locations=realm-config.json

Configuration:

{
  "realm": "corporate",
  "components": {
    "org.keycloak.storage.UserStorageProvider": [
      {
        "name": "ldap",
        "providerId": "ldap",
        "config": {
          "editMode": ["READ_ONLY"]
        }
      }
    ]
  },
  "users": [
    {
      "username": "existing.ldap.user",
      "realmRoles": ["user"]
    }
  ]
}

Result: - Attributes set to null for federated users - Avoids read-only conflicts - Role assignments still work - Useful for managing roles/groups without touching LDAP attributes

LDAP Edit Modes

Understanding edit modes is crucial:

Edit Mode User Creation User Updates Use Case
READ_ONLY Not allowed Not allowed LDAP is authoritative, no Keycloak modifications
WRITABLE Via LDAP Sync to LDAP Keycloak can modify LDAP
UNSYNCED Local only Local only Users fetched from LDAP but changes stay local
{
  "config": {
    "editMode": ["READ_ONLY"]
  }
}

Behavior: - Users imported from LDAP - No user creation in Keycloak - No user modifications synced to LDAP - LDAP remains single source of truth

Use when: - LDAP is managed by another team - Corporate directory is authoritative - No LDAP write permissions available

WRITABLE

{
  "config": {
    "editMode": ["WRITABLE"]
  }
}

Behavior: - Users can be created in Keycloak - User changes sync back to LDAP - Requires LDAP write permissions

Use when: - Keycloak manages user lifecycle - LDAP write permissions available - Need user self-service features

Requirements: - Service account with LDAP write permissions - All required LDAP attributes configured - Matching password policies

UNSYNCED

{
  "config": {
    "editMode": ["UNSYNCED"]
  }
}

Behavior: - Users imported from LDAP once - Local modifications don't sync to LDAP - Changes only in Keycloak database

Use when: - Need local user modifications - Cannot write to LDAP - Hybrid approach required

Warning: Creates divergence between LDAP and Keycloak data.

Complete LDAP Configuration Examples

Example 1: Active Directory (Read-Only)

{
  "realm": "corporate",
  "enabled": true,
  "components": {
    "org.keycloak.storage.UserStorageProvider": [
      {
        "name": "corporate-ad",
        "providerId": "ldap",
        "config": {
          "enabled": ["true"],
          "priority": ["0"],
          "vendor": ["Active Directory"],
          "connectionUrl": ["ldaps://ad.corporate.com:636"],
          "startTls": ["false"],
          "authType": ["simple"],
          "bindDn": ["CN=keycloak-svc,CN=Service Accounts,DC=corporate,DC=com"],
          "bindCredential": ["ServiceAccountPassword"],
          "usersDn": ["CN=Users,DC=corporate,DC=com"],
          "userObjectClasses": ["person", "organizationalPerson", "user"],
          "usernameLDAPAttribute": ["sAMAccountName"],
          "rdnLDAPAttribute": ["cn"],
          "uuidLDAPAttribute": ["objectGUID"],
          "firstNameLDAPAttribute": ["givenName"],
          "lastNameLDAPAttribute": ["sn"],
          "emailLDAPAttribute": ["mail"],
          "editMode": ["READ_ONLY"],
          "fullSyncPeriod": ["86400"],
          "changedSyncPeriod": ["3600"],
          "searchScope": ["2"],
          "useTruststoreSpi": ["ldapsOnly"]
        }
      }
    ]
  }
}

Example 2: OpenLDAP (Writable)

{
  "realm": "development",
  "enabled": true,
  "components": {
    "org.keycloak.storage.UserStorageProvider": [
      {
        "name": "dev-ldap",
        "providerId": "ldap",
        "config": {
          "enabled": ["true"],
          "priority": ["0"],
          "vendor": ["Other"],
          "connectionUrl": ["ldap://ldap.dev.local:389"],
          "authType": ["simple"],
          "bindDn": ["cn=admin,dc=dev,dc=local"],
          "bindCredential": ["admin123"],
          "usersDn": ["ou=users,dc=dev,dc=local"],
          "userObjectClasses": ["inetOrgPerson"],
          "usernameLDAPAttribute": ["uid"],
          "rdnLDAPAttribute": ["uid"],
          "uuidLDAPAttribute": ["entryUUID"],
          "firstNameLDAPAttribute": ["givenName"],
          "lastNameLDAPAttribute": ["sn"],
          "emailLDAPAttribute": ["mail"],
          "editMode": ["WRITABLE"],
          "fullSyncPeriod": ["-1"],
          "changedSyncPeriod": ["-1"]
        }
      }
    ]
  },
  "users": [
    {
      "username": "developer1",
      "email": "dev1@dev.local",
      "firstName": "Developer",
      "lastName": "One",
      "enabled": true,
      "credentials": [
        {
          "type": "password",
          "value": "DevPassword123",
          "temporary": false
        }
      ]
    }
  ]
}

Example 3: Hybrid (LDAP + Local Service Accounts)

{
  "realm": "production",
  "enabled": true,
  "components": {
    "org.keycloak.storage.UserStorageProvider": [
      {
        "name": "employee-ldap",
        "providerId": "ldap",
        "config": {
          "enabled": ["true"],
          "priority": ["1"],
          "vendor": ["Active Directory"],
          "connectionUrl": ["ldaps://ad.company.com:636"],
          "bindDn": ["CN=keycloak,CN=Service Accounts,DC=company,DC=com"],
          "bindCredential": ["${LDAP_PASSWORD}"],
          "usersDn": ["OU=Employees,DC=company,DC=com"],
          "usernameLDAPAttribute": ["sAMAccountName"],
          "editMode": ["READ_ONLY"],
          "customUserSearchFilter": ["(&(objectClass=user)(!(userAccountControl:1.2.840.113556.1.4.803:=2)))"]
        }
      }
    ]
  },
  "users": [
    {
      "username": "monitoring-service",
      "email": "monitoring@company.com",
      "enabled": true,
      "serviceAccountClientId": "monitoring-client"
    },
    {
      "username": "backup-service",
      "email": "backup@company.com",
      "enabled": true,
      "serviceAccountClientId": "backup-client"
    },
    {
      "username": "break-glass-admin",
      "email": "admin@company.com",
      "enabled": true,
      "credentials": [
        {
          "type": "password",
          "value": "${ADMIN_PASSWORD}",
          "temporary": false
        }
      ],
      "realmRoles": ["admin"]
    }
  ]
}

Common Pitfalls

1. Creating Local Users in LDAP-Enabled Realm

Problem:

{
  "components": {
    "org.keycloak.storage.UserStorageProvider": [
      {
        "name": "ldap",
        "providerId": "ldap",
        "config": {
          "editMode": ["READ_ONLY"]
        }
      }
    ]
  },
  "users": [
    {
      "username": "john.doe"
    }
  ]
}

Error: 400 Bad Request: User creation not permitted

Solution: Remove users from config, create in LDAP instead.

2. Missing Required LDAP Attributes

Problem:

{
  "users": [
    {
      "username": "john.doe",
      "enabled": true
    }
  ]
}

Error: 400 Bad Request: Required LDAP attributes missing

Solution: Provide all required attributes:

{
  "users": [
    {
      "username": "john.doe",
      "firstName": "John",
      "lastName": "Doe",
      "email": "john.doe@company.com",
      "enabled": true
    }
  ]
}

3. Insufficient LDAP Permissions

Problem: Service account lacks write permissions

Error: 500 Internal Server Error: Insufficient permissions to create user in LDAP

Solution: - Grant write permissions to LDAP service account - Or use READ_ONLY mode and create users in LDAP directly

4. Trying to Modify Federated User Attributes

Problem:

{
  "users": [
    {
      "username": "existing.ldap.user",
      "email": "newemail@company.com"
    }
  ]
}

Error: 400 Bad Request: Cannot modify read-only attribute

Solution: Use skip-attributes flag:

--import.behaviors.skip-attributes-for-federated-user=true

5. Wrong User DN Structure

Problem:

{
  "config": {
    "usersDn": ["CN=Users,DC=corporate,DC=com"]
  }
}

Result: Users not found, sync fails

Solution: Verify correct DN in LDAP:

ldapsearch -H ldap://ldap.corporate.com \
  -D "CN=admin,DC=corporate,DC=com" \
  -w password \
  -b "DC=corporate,DC=com" \
  "(objectClass=user)"

Best Practices

  1. Use READ_ONLY Mode for Corporate Directories

    {
  "config": {
    "editMode": ["READ_ONLY"]
  }
}

  2. Separate Local Service Accounts

  3. LDAP for human users
  4. Local users for service accounts

  5. Clear separation of concerns

  6. Don't Include User Definitions with LDAP

Good:

{
  "components": {
    "org.keycloak.storage.UserStorageProvider": [
      {
        "name": "ldap",
        "providerId": "ldap",
        "config": {}
      }
    ]
  }
}

Bad:

{
  "components": {
    "org.keycloak.storage.UserStorageProvider": [
      {
        "name": "ldap",
        "providerId": "ldap"
      }
    ]
  },
  "users": [
    {
      "username": "john.doe"
    }
  ]
}

  1. Use Environment Variables for Credentials

    {
  "bindCredential": ["${LDAP_PASSWORD}"]
}

  2. Configure Proper Sync Schedules

    {
  "fullSyncPeriod": ["86400"],
  "changedSyncPeriod": ["3600"]
}

  3. Test LDAP Connection First

    ldapsearch -H ldap://ldap.company.com \
  -D "CN=keycloak,CN=Users,DC=company,DC=com" \
  -w password \
  -b "DC=company,DC=com" \
  "(objectClass=user)"

  4. Use SSL/TLS for LDAP Connections

    {
  "connectionUrl": ["ldaps://ldap.company.com:636"],
  "useTruststoreSpi": ["ldapsOnly"]
}

  5. Document LDAP Schema Requirements

  6. Required attributes
  7. Object classes
  8. DN structure
  9. Keep in repository

Troubleshooting

Users Not Syncing from LDAP

Symptom: LDAP configured but no users appear

Diagnosis:

  1. Check LDAP connection in Admin Console:
  2. User Federation → ldap → Test connection

  3. User Federation → ldap → Test authentication

  4. Check sync status:

  5. User Federation → ldap → Synchronize all users

  6. Verify search base:

    {
  "usersDn": ["CN=Users,DC=company,DC=com"]
}

Solution: - Fix connection settings - Verify usersDn is correct - Check LDAP service account permissions - Review Keycloak logs for LDAP errors

User Creation Fails with 400

Symptom: 400 Bad Request when importing users

Diagnosis:

curl -s "http://localhost:8080/admin/realms/myrealm/components" \
  -H "Authorization: Bearer $TOKEN" | \
  jq '.[] | select(.providerType=="org.keycloak.storage.UserStorageProvider")'

Solution: - If LDAP present: Remove users from config or switch to WRITABLE mode - If no LDAP: Check for other user federation (SSSD, Kerberos, etc.)

LDAP Write Operations Fail

Symptom: Users configured with WRITABLE mode but creation fails

Possible causes: 1. Insufficient LDAP permissions 2. Missing required attributes 3. LDAP password policy violations 4. Wrong DN structure

Solution:

{
  "users": [
    {
      "username": "john.doe",
      "firstName": "John",
      "lastName": "Doe",
      "email": "john@company.com",
      "credentials": [
        {
          "type": "password",
          "value": "ComplexP@ssw0rd123",
          "temporary": false
        }
      ]
    }
  ]
}

Federated User Attributes Read-Only

Symptom: Cannot update user attributes

Solution: Use skip-attributes flag:

--import.behaviors.skip-attributes-for-federated-user=true

Or change to UNSYNCED mode:

{
  "config": {
    "editMode": ["UNSYNCED"]
  }
}

Configuration Options

--import.behaviors.skip-attributes-for-federated-user=true

--import.behaviors.sync-user-federation=true

Consequences

When using LDAP user federation:

  1. User Management Shifts to LDAP: Cannot create users in Keycloak with READ_ONLY mode
  2. Attribute Limitations: Some attributes become read-only
  3. Authentication Dependence: LDAP must be available for authentication
  4. Sync Delays: User changes in LDAP may not appear immediately in Keycloak
  5. Local vs Federated Complexity: Need to manage two types of users separately
  6. Password Policies: LDAP password policies take precedence
