OTP Policy Configuration

When configuring One-Time Password (OTP) policies in Keycloak realms, users often encounter issues where certain OTP policy settings appear to be ignored during import. Understanding how to properly configure OTP policies in keycloak-config-cli is essential for ensuring multi-factor authentication works as expected.

Related issues: #847

The Problem

Users often encounter confusion when configuring OTP policies because: - Setting only otpPolicyAlgorithm in the configuration doesn't apply the change - Some OTP policy fields appear to be ignored during import - It's unclear which OTP policy fields must be configured together - Default values may override explicitly set values if the configuration is incomplete - The relationship between different OTP policy settings is not obvious

What is OTP Policy?

OTP (One-Time Password) policy in Keycloak controls how Time-based One-Time Passwords (TOTP) and HMAC-based One-Time Passwords (HOTP) are generated and validated for multi-factor authentication.

Key OTP Policy Settings: - Algorithm: Hash algorithm used (HmacSHA1, HmacSHA256, HmacSHA512) - Digits: Number of digits in the OTP (6 or 8) - Period: Time window for TOTP validity (in seconds) - Initial Counter: Starting counter value for HOTP - Look Ahead Window: Number of intervals to check for validation

Why otpPolicyAlgorithm Gets Ignored

The otpPolicyAlgorithm field is ignored when:

Incomplete OTP Policy Configuration: Setting only one field without others causes Keycloak to use default values
Missing Required Fields: OTP policy requires a complete set of related fields to be valid
Type Mismatch: Using hotp type without proper counter configuration
Implicit Defaults: Keycloak applies defaults when the policy is partially configured

Usage

Complete OTP Policy Configuration (TOTP)

Scenario: Configure a realm to use SHA-256 algorithm for TOTP with 6-digit codes.

realm: "myrealm"
otpPolicyType: "totp"
otpPolicyAlgorithm: "HmacSHA256"
otpPolicyDigits: 6
otpPolicyInitialCounter: 0
otpPolicyLookAheadWindow: 1
otpPolicyPeriod: 30

Result: - TOTP uses HmacSHA256 algorithm - Generates 6-digit codes - 30-second validity window - Looks ahead 1 time window for validation

Important: All OTP policy fields should be specified together for consistent behavior.

Incomplete Configuration (Problematic)

Scenario: Attempting to change only the algorithm.

Problematic Configuration:

realm: "myrealm"
otpPolicyAlgorithm: "HmacSHA256"  # Only this field set

What happens: - The otpPolicyAlgorithm may be ignored - Keycloak uses default values for other fields - Results in inconsistent OTP configuration - May revert to default HmacSHA1 algorithm

Why it fails: Keycloak's OTP policy expects a complete configuration. Partial updates may not be applied correctly.

HOTP Configuration

Scenario: Configure HMAC-based OTP instead of time-based.

realm: "myrealm"
otpPolicyType: "hotp"
otpPolicyAlgorithm: "HmacSHA1"
otpPolicyDigits: 6
otpPolicyInitialCounter: 0
otpPolicyLookAheadWindow: 10

Result: - Uses counter-based OTP (HOTP) - HmacSHA1 algorithm - 6-digit codes - Looks ahead 10 counter values for validation

Note: For HOTP, the otpPolicyPeriod field is not used.

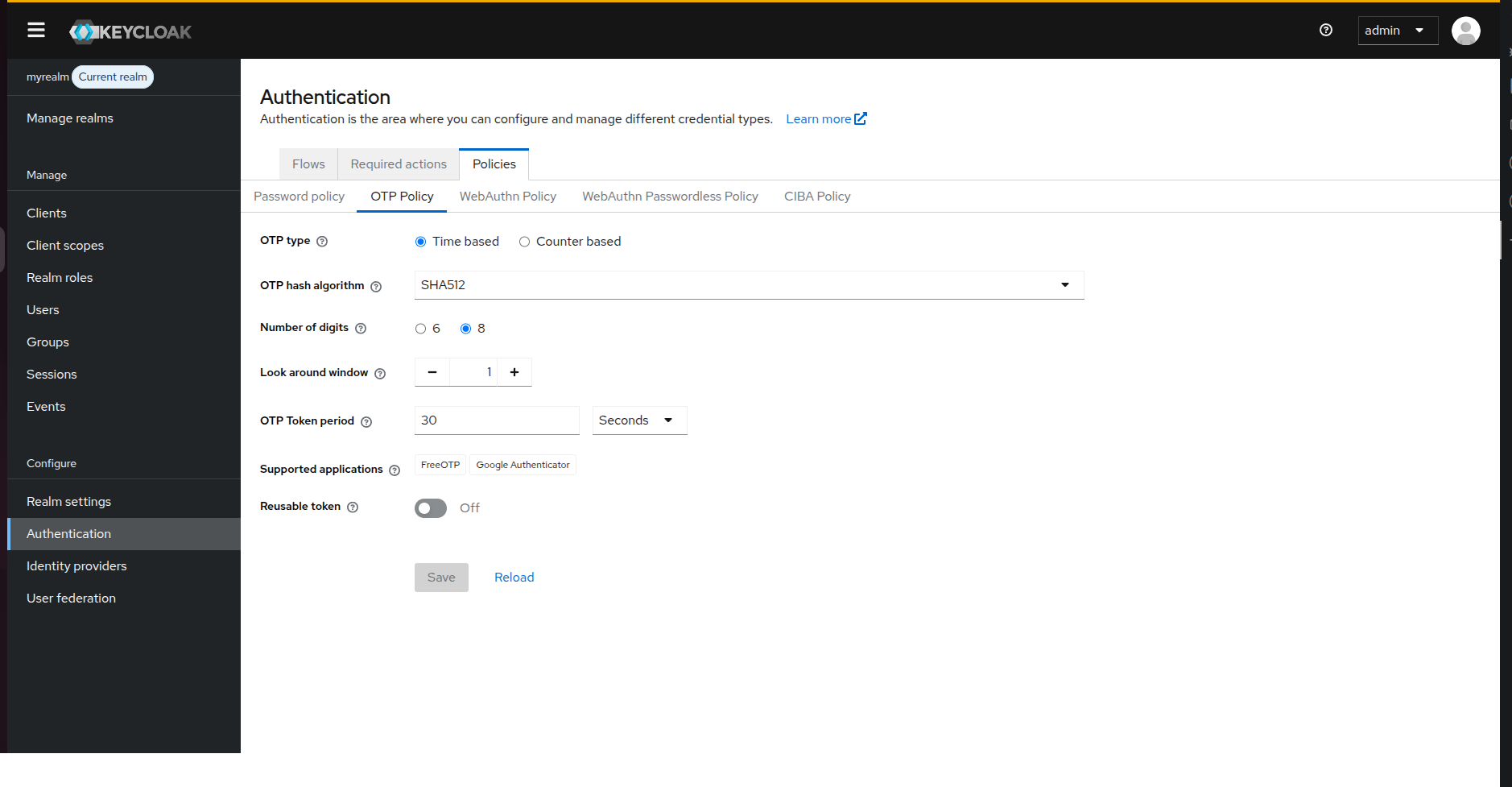

High Security OTP Configuration

Scenario: Maximum security setup with SHA-512 and 8-digit codes.

realm: "myrealm"
otpPolicyType: "totp"
otpPolicyAlgorithm: "HmacSHA512"
otpPolicyDigits: 8
otpPolicyInitialCounter: 0
otpPolicyLookAheadWindow: 1
otpPolicyPeriod: 30
otpPolicySupportedApplications:
  - "totpAppFreeOTPName"
  - "totpAppGoogleName"

Result: - Most secure hash algorithm (SHA-512) - 8-digit codes for additional security - Compatible with Google Authenticator and FreeOTP

OTP Policy Fields Reference

Field	Type	Values	Description	Required
`otpPolicyType`	String	`totp`, `hotp`	Type of OTP	Yes
`otpPolicyAlgorithm`	String	`HmacSHA1`, `HmacSHA256`, `HmacSHA512`	Hash algorithm	Yes
`otpPolicyDigits`	Integer	`6`, `8`	Number of digits in OTP	Yes
`otpPolicyInitialCounter`	Integer	`0` or higher	Initial counter (mainly for HOTP)	Yes
`otpPolicyLookAheadWindow`	Integer	`1` or higher	Validation window size	Yes
`otpPolicyPeriod`	Integer	`30` (seconds)	TOTP time window	For TOTP

Common Pitfalls

1. Setting Only Algorithm

Problem:

realm: "myrealm"
otpPolicyAlgorithm: "HmacSHA256"
# Other fields missing

What happens: Algorithm change is ignored, other fields use defaults.

Solution: Always specify all OTP policy fields together:

realm: "myrealm"
otpPolicyType: "totp"
otpPolicyAlgorithm: "HmacSHA256"
otpPolicyDigits: 6
otpPolicyInitialCounter: 0
otpPolicyLookAheadWindow: 1
otpPolicyPeriod: 30

2. Mixing TOTP and HOTP Settings

Problem:

realm: "myrealm"
otpPolicyType: "hotp"
otpPolicyPeriod: 30  # Period is for TOTP, not HOTP

What happens: Conflicting configuration, unpredictable behavior.

Solution: Use appropriate fields for the OTP type:

For TOTP:

otpPolicyType: "totp"
otpPolicyPeriod: 30  # Include period

For HOTP:

otpPolicyType: "hotp"
# Don't include otpPolicyPeriod
otpPolicyLookAheadWindow: 10  # Important for HOTP

3. Incorrect Algorithm Names

Problem:

otpPolicyAlgorithm: "SHA256"  # Wrong!

Correct values:

otpPolicyAlgorithm: "HmacSHA256"  # Correct
# or
otpPolicyAlgorithm: "HmacSHA1"    # Correct
# or
otpPolicyAlgorithm: "HmacSHA512"  # Correct

Note: Must include the Hmac prefix.

4. Exporting and Missing Fields

Problem: Exporting a realm and re-importing without all OTP policy fields.

When exporting:

{
  "realm": "myrealm",
  "otpPolicyAlgorithm": "HmacSHA256",
  // Other fields may be missing from export
}

Solution: Ensure exported configuration includes all OTP policy fields, or add them manually:

realm: "myrealm"
otpPolicyType: "totp"
otpPolicyAlgorithm: "HmacSHA256"
otpPolicyDigits: 6
otpPolicyInitialCounter: 0
otpPolicyLookAheadWindow: 1
otpPolicyPeriod: 30

Best Practices

Always Configure Complete OTP Policy: Include all related fields in a single configuration block
Use Standard Values First: Start with standard settings (SHA256, 6 digits, 30 seconds) unless security requirements dictate otherwise
Document Your Choices: Add comments explaining why specific OTP settings were chosen
Test Authentication: After applying OTP policy changes, test with authenticator apps (Google Authenticator, FreeOTP)
Version Control: Store OTP policy configurations in version control to track security policy changes
Coordinate with Users: Changing OTP settings may require users to re-register their authenticators

Configuration Template

Here's a complete template for OTP policy configuration:

realm: "myrealm"
enabled: true

# OTP Policy Configuration
otpPolicyType: "totp"                    # totp or hotp
otpPolicyAlgorithm: "HmacSHA256"         # HmacSHA1, HmacSHA256, or HmacSHA512
otpPolicyDigits: 6                       # 6 or 8
otpPolicyInitialCounter: 0               # Starting counter
otpPolicyLookAheadWindow: 1              # Validation window
otpPolicyPeriod: 30                      # Time window in seconds (TOTP only)

# Optional: Specify supported authenticator apps
otpPolicySupportedApplications:
  - "totpAppFreeOTPName"
  - "totpAppGoogleName"
  - "totpAppMicrosoftAuthenticatorName"

Verifying OTP Policy Configuration

After applying the configuration, verify in Keycloak Admin Console:

Navigate to: Realm Settings → Security defenses → OTP Policy
Verify all settings match your configuration:
OTP Type
OTP Hash Algorithm
Number of Digits
Look Ahead Window
OTP Token Period

Algorithm Comparison

Algorithm	Security Level	Compatibility	Recommendation
HmacSHA1	Basic	Universal	Legacy systems only
HmacSHA256	Strong	Modern apps	Recommended
HmacSHA512	Maximum	Modern apps	High security environments

Migration Guide

From SHA1 to SHA256

Scenario: Upgrading from legacy SHA1 to more secure SHA256.

Steps:

Announce the change to users (they'll need to re-register authenticators)

Update configuration:

realm: "myrealm"
otpPolicyType: "totp"
otpPolicyAlgorithm: "HmacSHA256"  # Changed from HmacSHA1
otpPolicyDigits: 6
otpPolicyInitialCounter: 0
otpPolicyLookAheadWindow: 1
otpPolicyPeriod: 30

Apply the configuration using keycloak-config-cli
Communicate to users:
Existing OTP credentials will need to be re-configured
Users must remove old authenticator entries
Users must re-scan QR code with authenticator app

Important: This is a breaking change for existing users. Plan accordingly.

Troubleshooting

OTP Algorithm Not Applying

Symptom: After import, OTP algorithm remains as default (HmacSHA1)

Diagnosis:

# Check realm configuration
curl -s "http://localhost:8080/admin/realms/myrealm" \
  -H "Authorization: Bearer $TOKEN" | jq '.otpPolicy'

Possible causes: 1. Incomplete OTP policy configuration 2. Missing required fields 3. Configuration file not being imported 4. Import validation errors

Solution: Use complete OTP policy configuration with all fields.

Users Can't Authenticate After OTP Change

Symptom: Users receive "Invalid authenticator code" errors

Cause: OTP algorithm change requires users to re-register their authenticators

Solution: 1. Users must delete old authenticator entry 2. In Keycloak, remove old OTP credential 3. User re-registers with new QR code 4. Test authentication with new code

Configuration Options

# Validate configuration before import
--import.validate=true

# Check what will be changed
--import.remote-state.enabled=true

Consequences

When configuring OTP policies in keycloak-config-cli:

Complete Configuration Required: All OTP policy fields must be specified together for changes to apply correctly
Algorithm Changes Break Existing Credentials: Users must re-register authenticators after algorithm changes
Type Changes Are Disruptive: Switching between TOTP and HOTP requires user action
Defaults May Override: Partial configurations may result in unexpected default values being applied
No Backward Compatibility: Old authenticator entries won't work after policy changes

Security Considerations

SHA1 is Deprecated: Avoid HmacSHA1 for new deployments; considered weak by modern standards
8-digit Codes: More secure but less user-friendly; use for high-security environments
Period Duration: 30 seconds is standard; shorter periods increase security but reduce usability
Look Ahead Window: Larger windows reduce failed authentications but slightly decrease security

#847 - otpPolicyAlgorithm ignored

Additional Resources

Keycloak OTP Policy Documentation
TOTP RFC 6238
HOTP RFC 4226
