Understanding Client Roles Case Sensitivity

Keycloak treats client role names as case-sensitive, which is expected behavior in Keycloak's design. Understanding how case sensitivity works with client roles is essential for effective role management with keycloak-config-cli. This guide explains the behavior and provides best practices for consistent role management.

Related discussion: #940

Understanding Case Sensitivity Behavior

Keycloak's case-sensitive client role handling means that:

• "Admin" and "admin" are treated as different client roles
• Configuration files must use consistent capitalization for role updates
• Manual role creation in UI vs. config file requires exact case matching
• Role assignments succeed only with exact case matches
• Multiple roles with different cases can coexist
• HTTP 409 errors occur when trying to create roles that already exist with different case
• Error messages may require trace logging to identify specific conflicts

Example: Multiple Client Roles with Different Cases

Client: my-application
├── Roles:
│   ├── Admin          (created manually in UI)
│   ├── admin          (defined in config file)
│   └── ADMIN          (another variation)

As shown above, Keycloak creates separate client roles for "Admin", "admin", and "ADMIN" - each is treated as a completely different role.

Understanding Case Sensitivity in Client Roles

How Keycloak Handles Client Role Names

Keycloak's client role system is strictly case-sensitive:

1. Name Matching
2. "Admin" ≠ "admin" ≠ "ADMIN"
3. Each variation is a separate, distinct client role

4. No case-insensitive matching available

5. Client Association

6. Roles are tied to specific clients
7. Case sensitivity applies within each client's role namespace

8. Different clients can have roles with same name but different case

9. Role Operations

10. Create, update, delete all use exact case matching
11. Role lookup fails if case doesn't match
12. Role assignments require exact name match

---

Expected Behavior Examples

Example 1: Creating Different Roles with Case Variations

When you create roles with different cases, Keycloak treats them as distinct roles:

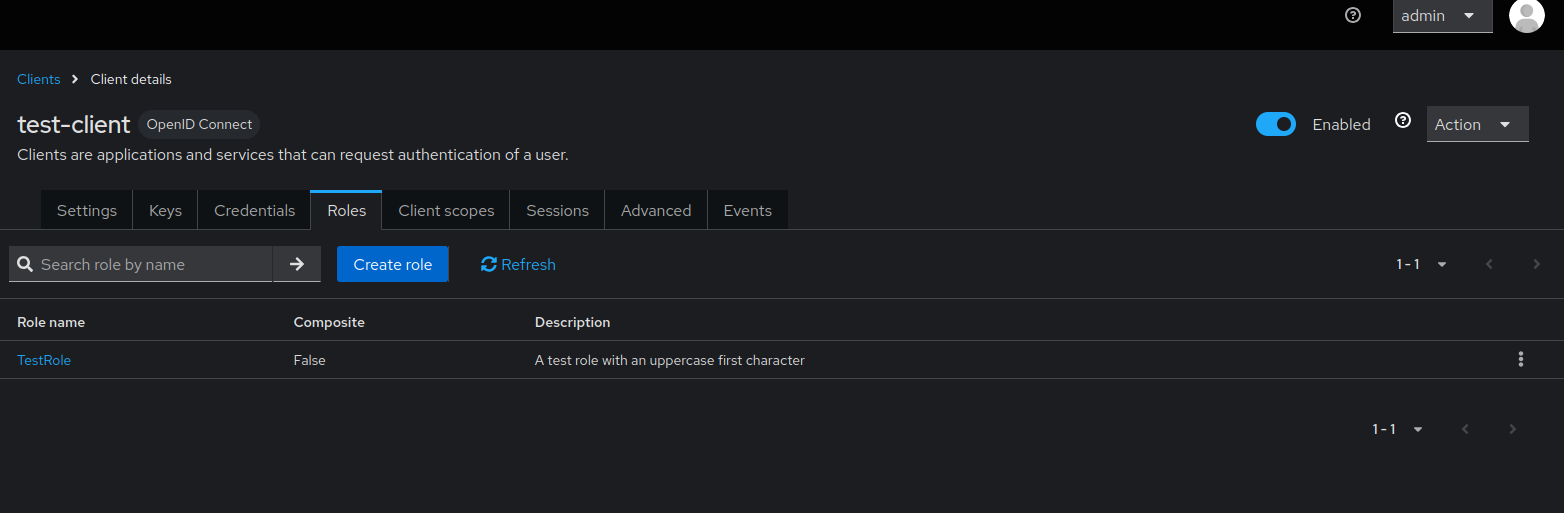

First import with uppercase role:

{
  "realm": "test-realm",
  "enabled": true,
  "clients": [
    {
      "clientId": "test-client",
      "enabled": true,
      "clientAuthenticatorType": "client-secret",
      "secret": "test-client-secret",
      "redirectUris": ["https://example.com/*"],
      "webOrigins": ["https://example.com"],
      "publicClient": false,
      "protocol": "openid-connect"
    }
  ],
  "roles": {
    "client": {
      "test-client": [
        {
          "name": "TestRole",
          "description": "A test role with an uppercase first character"
        }
      ]
    }
  }
}

This creates the role "TestRole" successfully.

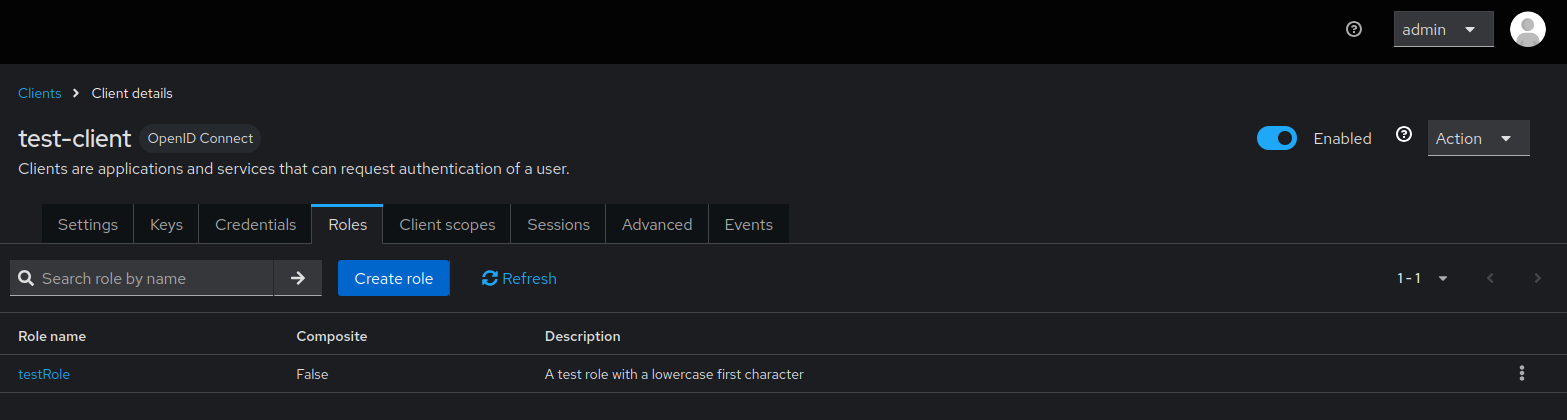

Second import with lowercase role:

{
  "realm": "test-realm",
  "enabled": true,
  "clients": [
    {
      "clientId": "test-client",
      "enabled": true,
      "clientAuthenticatorType": "client-secret",
      "secret": "test-client-secret",
      "redirectUris": ["https://example.com/*"],
      "webOrigins": ["https://example.com"],
      "publicClient": false,
      "protocol": "openid-connect"
    }
  ],
  "roles": {
    "client": {
      "test-client": [
        {
          "name": "testRole",
          "description": "A test role with a lowercase first character"
        }
      ]
    }
  }
}

This creates a separate role "testRole" - both roles now exist in Keycloak.

Example 2: Multiple Roles in Same Configuration

clients:
  - clientId: my-application
    roles:
      - name: Admin
        description: Administrator role
      - name: admin
        description: Different role with lowercase name
      - name: ADMIN
        description: Another distinct role

This creates three separate client roles, each with different permissions.

Example 3: Role Assignment with Exact Case Matching

users:
  - username: john.doe
    clientRoles:
      my-application:
        - Admin  # Must match exact role name

The user gets assigned the "Admin" role, not "admin" or "ADMIN".

Behavior Details

HTTP 409 Conflict

• Cause: Attempting to create a role that already exists with different case
• When: Keycloak prevents creating duplicate roles (even with different case)
• Result: Import fails for that specific role, but other operations may continue
• Solution: Use exact case matching or delete the existing role first

Role Assignment Behavior

• Cause: Role reference case doesn't match actual role name
• When: Assigning roles to users or service accounts
• Result: Assignment fails if exact case match not found
• Solution: Ensure role references match exact case in Keycloak

---

Best Practices for Client Role Management

1. Establish Consistent Naming Conventions

Recommended Naming Patterns:

• lowercase-with-hyphens: app-admin, read-only
• UPPER_CASE_WITH_UNDERSCORES: APP_ADMIN, READ_ONLY
• CamelCase: appAdmin, readOnly

Choose one convention and apply it consistently across all environments.

2. Audit Existing Roles Before Configuration Changes

Pre-Configuration Check Example

# Check for existing roles with case variations
#!/bin/bash
REALM="my-realm"
CLIENT="my-application"

# Export existing roles
kcadm.sh get clients -r $REALM -q clientId=$CLIENT | jq -r '.[0].id' > client_id.txt
CLIENT_ID=$(cat client_id.txt)

kcadm.sh get roles -r $REALM -c $CLIENT_ID | jq -r '.[].name' | sort -f > existing_roles.txt

echo "Existing client roles (case-insensitive sort):"
cat existing_roles.txt

3. Use Role Normalization

Configuration with Normalized Names

# Use consistent naming in configuration
clients:
  - clientId: my-application
    roles:
      - name: app-admin
        description: Administrator access
        attributes:
          original-name: "Admin" # Track original if needed
      - name: app-user
        description: Standard user access

4. Migration Strategy

Step 1: Identify Case Conflicts

# Migration script to identify conflicts
migration:
  detect-case-conflicts: true
  clients:
    - clientId: my-application
      existing-roles: ["Admin", "admin", "ADMIN"]

Step 2: Standardize Names

# Updated configuration with standardized names
clients:
  - clientId: my-application
    roles:
      - name: app-admin # Standardized name
        description: Administrator access
        # Map from old names if needed
        aliases: ["Admin", "admin", "ADMIN"]

Step 3: Update References

# Update all role references
users:
  - username: john.doe
    clientRoles:
      my-application:
        - app-admin # Updated from "Admin"

---

Configuration Examples

Complete Working Example

realm: my-realm

clients:
  - clientId: my-application
    name: My Application
    roles:
      # Standardized role names (lowercase with hyphens)
      - name: app-admin
        description: Full administrator access
        attributes:
          category: "administrative"
          level: "full"
      - name: app-user
        description: Standard user access
        attributes:
          category: "standard"
          level: "basic"
      - name: read-only
        description: Read-only access
        attributes:
          category: "limited"
          level: "readonly"

users:
  - username: admin.user
    enabled: true
    clientRoles:
      my-application:
        - app-admin
  - username: regular.user
    enabled: true
    clientRoles:
      my-application:
        - app-user
  - username: readonly.user
    enabled: true
    clientRoles:
      my-application:
        - read-only

Migration Example

# Before: Mixed case roles
clients:
  - clientId: legacy-app
    roles:
      - name: Admin
      - name: User
      - name: ReadOnly

# After: Standardized roles
clients:
  - clientId: legacy-app
    roles:
      - name: app-admin      # From "Admin"
      - name: app-user        # From "User"
      - name: read-only       # From "ReadOnly"

---

Configuration Guide

Common Configuration Scenarios

Scenario 1: Managing Existing Roles with Different Cases

Situation: You have existing roles with inconsistent casing and want to standardize them.

Approach: 1. Identify all existing roles and their cases 2. Choose a standard naming convention 3. Update configurations to use the standard case 4. Delete old roles if no longer needed

Scenario 2: Preventing Case Inconsistencies

Situation: You want to ensure consistent role naming across your team.

Approach: 1. Document your naming convention 2. Use configuration validation 3. Implement team training and guidelines

Scenario 3: Working with Multiple Environments

Situation: You need to manage roles across dev, staging, and production environments.

Approach: 1. Use the same configuration files across environments 2. Apply consistent naming conventions 3. Test configurations in non-production first

Configuration Verification Steps

1. List Existing Roles

# List all client roles with exact case
kcadm.sh get roles -r my-realm -c <client-id> | jq -r '.[].name'

2. Validate Configuration Files

# Test configuration before applying
keycloak-config-cli --dry-run --validate-config

3. Enable Detailed Logging (if needed)

# In keycloak-config-cli configuration
logging:
  level:
    de.adorsys.keycloak.config: TRACE

---

Configuration Management Best Practices

1. Establish Team Standards

Create Team Guidelines:

• Document preferred naming convention
• Include case sensitivity rules in team documentation
• Provide configuration templates and examples
• Review configuration changes in pull requests

2. Implement Configuration Validation

Pre-commit Hooks

#!/bin/bash
# Check for case inconsistencies in client roles
grep -r "name:" clients/ | sort -f | uniq -d -i

CI/CD Pipeline Validation

# GitHub Actions example
- name: Validate role naming consistency
  run: |
    python scripts/validate-role-names.py

3. Regular Configuration Audits

Monthly Role Management Reviews:

• Export all client roles from each environment
• Check for case variations and inconsistencies
• Identify opportunities for standardization
• Update configurations as needed

4. Team Education and Documentation

Knowledge Sharing:

• Include case sensitivity behavior in team training
• Provide naming convention guidelines
• Share configuration examples and templates
• Document role management procedures

---

Advanced Topics

Role Aliases and Mapping

For complex migrations, consider role mapping:

# Advanced: Role mapping for legacy systems
clients:
  - clientId: enterprise-app
    roles:
      - name: system-administrator
        description: System administrator role
        aliases:
          - "Admin" # Legacy name
          - "admin" # Alternative case
          - "ADMIN" # Another variation
        attributes:
          legacy-names: '["Admin", "admin", "ADMIN"]'

Programmatic Role Management

Custom Scripts for Role Normalization:

#!/usr/bin/env python3
import sys
import yaml

def normalize_role_names(config):
    """Normalize client role names to lowercase with hyphens"""
    for client in config.get('clients', []):
        if 'roles' in client:
            for role in client['roles']:
                old_name = role['name']
                new_name = old_name.lower().replace('_', '-')
                role['name'] = new_name
                role['original_name'] = old_name
    return config

if __name__ == "__main__":
    with open(sys.argv[1], 'r') as f:
        config = yaml.safe_load(f)

    normalized = normalize_role_names(config)

    with open(sys.argv[2], 'w') as f:
        yaml.dump(normalized, f, default_flow_style=False)

---

Summary

Key Takeaways

1. Client roles are case-sensitive by design - "Admin" ≠ "admin" ≠ "ADMIN"
2. This is expected Keycloak behavior, not a bug in keycloak-config-cli
3. Consistent naming conventions prevent confusion across environments
4. Exact case matching is required for role updates and assignments
5. Configuration validation helps maintain consistency

Best Practices Checklist

• Establish and document role naming convention
• Audit existing roles for case variations
• Use consistent case in all configuration files
• Ensure role references match exact case in Keycloak
• Validate configurations before applying
• Implement validation in CI/CD pipeline
• Train team on case sensitivity behavior
• Schedule regular configuration reviews

By understanding Keycloak's case-sensitive design and following these guidelines, you can effectively manage client roles with keycloak-config-cli across all environments.
