First Broker Login Flow Configuration

Starting with Keycloak 24, you can configure a custom first broker login flow at the realm level. This allows you to define custom authentication behavior for users logging in through an external identity provider for the first time, before their accounts are linked to any existing Keycloak account.

The Problem

Before Keycloak 24, the first broker login flow could only be configured per identity provider using the firstBrokerLoginFlowAlias property. This meant:

Each identity provider had to be individually configured
No realm-wide default for first broker login behavior
Inconsistent user experience across different identity providers
More complex configuration management

The Solution

Keycloak 24+ introduces the ability to set a default first broker login flow at the realm level using the firstBrokerLoginFlow property. This allows you to:

Define a single custom flow for the entire realm
Override the default "first broker login" behavior
Ensure consistent authentication experience across all identity providers
Simplify configuration by setting it once at the realm level

Configuration

Basic Structure

{
  "enabled": true,
  "realm": "my-realm",
  "firstBrokerLoginFlow": "my custom first broker login",
  "authenticationFlows": [
    {
      "alias": "my custom first broker login",
      "description": "Custom first broker login flow for realm",
      "providerId": "basic-flow",
      "topLevel": true,
      "builtIn": false,
      "authenticationExecutions": [
        {
          "authenticator": "idp-create-user-if-unique",
          "requirement": "ALTERNATIVE",
          "priority": 0
        },
        {
          "authenticator": "idp-auto-link",
          "requirement": "REQUIRED",
          "priority": 1
        }
      ]
    }
  ]
}

Key Components

firstBrokerLoginFlow

The firstBrokerLoginFlow property at the realm level specifies which authentication flow to use when a user logs in via an external identity provider for the first time.

Authentication Flow

The referenced flow must be defined in the authenticationFlows section with: - topLevel: true - It must be a top-level flow - builtIn: false - Custom flows should not be marked as built-in - Appropriate authenticationExecutions - Define the authentication steps

Complete Example

File: create_custom_first_broker_login_flow.json

{
  "enabled": true,
  "realm": "realmWithFlow",
  "firstBrokerLoginFlow": "my realm first broker login",
  "authenticationFlows": [
    {
      "alias": "my auth flow",
      "description": "My auth flow for testing",
      "providerId": "basic-flow",
      "topLevel": true,
      "builtIn": false,
      "authenticationExecutions": [
        {
          "authenticator": "auth-username-password-form",
          "requirement": "REQUIRED",
          "priority": 0
        }
      ]
    },
    {
      "alias": "my realm first broker login",
      "description": "My custom first broker login flow for realm",
      "providerId": "basic-flow",
      "topLevel": true,
      "builtIn": false,
      "authenticationExecutions": [
        {
          "authenticator": "idp-create-user-if-unique",
          "requirement": "ALTERNATIVE",
          "priority": 0
        },
        {
          "authenticator": "idp-auto-link",
          "requirement": "REQUIRED",
          "priority": 1
        }
      ]
    }
  ]
}

Import:

java -jar keycloak-config-cli.jar \
  --keycloak.url=http://localhost:8080 \
  --keycloak.user=admin \
  --keycloak.password=admin \
  --import.files.locations=create_custom_first_broker_login_flow.json

Result:

The custom first broker login flow is created and set as the realm's default first broker login flow.

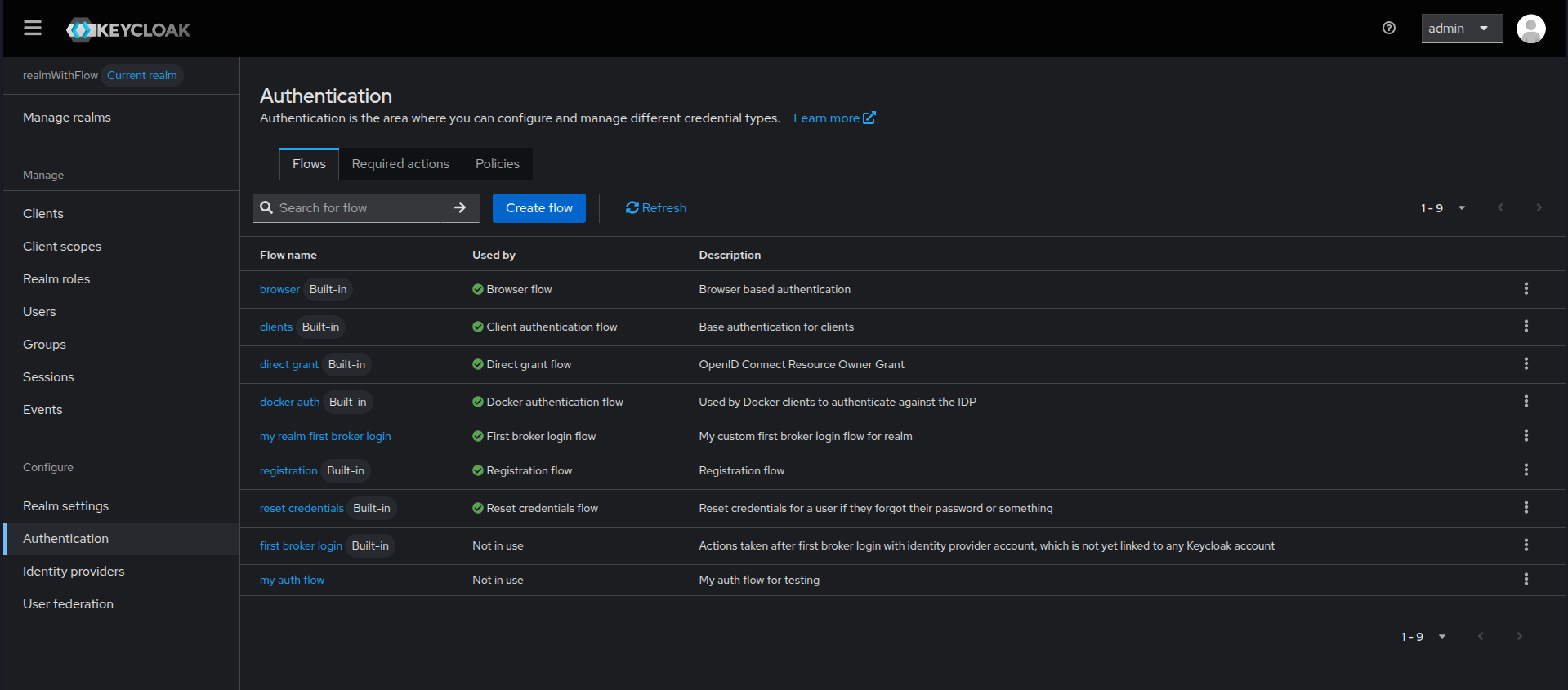

First broker login flow configured in Keycloak Admin Console

The Keycloak Admin Console showing "my realm first broker login" set as the First broker login flow for the realm.

Use Cases

Use Case 1: Custom User Creation Behavior

Scenario: You want to customize how new users are created when they first log in via an external identity provider.

Configuration:

{
  "realm": "corporate",
  "firstBrokerLoginFlow": "custom-user-onboarding",
  "authenticationFlows": [
    {
      "alias": "custom-user-onboarding",
      "description": "Custom onboarding for external users",
      "providerId": "basic-flow",
      "topLevel": true,
      "builtIn": false,
      "authenticationExecutions": [
        {
          "authenticator": "idp-create-user-if-unique",
          "requirement": "ALTERNATIVE",
          "priority": 0
        },
        {
          "authenticator": "idp-auto-link",
          "requirement": "ALTERNATIVE",
          "priority": 1
        },
        {
          "authenticator": "idp-confirm-link",
          "requirement": "ALTERNATIVE",
          "priority": 2
        }
      ]
    }
  ]
}

Result: All identity providers in the realm will use this custom flow for first-time broker logins.

Use Case 2: Enhanced Security for External Users

Scenario: You want to add additional verification steps for users logging in via external identity providers.

Configuration:

{
  "realm": "secure-realm",
  "firstBrokerLoginFlow": "enhanced-first-broker-login",
  "authenticationFlows": [
    {
      "alias": "enhanced-first-broker-login",
      "description": "Enhanced security for external authentication",
      "providerId": "basic-flow",
      "topLevel": true,
      "builtIn": false,
      "authenticationExecutions": [
        {
          "authenticator": "idp-create-user-if-unique",
          "requirement": "REQUIRED",
          "priority": 0
        },
        {
          "authenticator": "auth-otp-form",
          "requirement": "REQUIRED",
          "priority": 1
        }
      ]
    }
  ]
}

Result: External users must complete OTP verification on their first login.

Important Notes

Keycloak Version Requirement

The firstBrokerLoginFlow property at the realm level is only available in Keycloak 24 and later. Attempting to use this feature on earlier versions will be ignored.

Precedence

If an identity provider has firstBrokerLoginFlowAlias set, it takes precedence over the realm-level firstBrokerLoginFlow
If the identity provider doesn't specify a flow, the realm-level firstBrokerLoginFlow is used
If neither is set, Keycloak uses the built-in "first broker login" flow

Flow Requirements

The referenced authentication flow must: - Exist in the same realm - Be a top-level flow (topLevel: true) - Have appropriate authenticators configured for broker login scenarios

Common Pitfalls

1. Flow Not Found

Problem: The specified flow doesn't exist.

{
  "realm": "my-realm",
  "firstBrokerLoginFlow": "non-existent-flow"
}

Result: Error during import - the flow must be defined in the same configuration.

Solution: Define the flow before referencing it:

{
  "realm": "my-realm",
  "firstBrokerLoginFlow": "my-custom-flow",
  "authenticationFlows": [
    {
      "alias": "my-custom-flow",
      "providerId": "basic-flow",
      "topLevel": true,
      "builtIn": false,
      "authenticationExecutions": [...]
    }
  ]
}

2. Not a Top-Level Flow

Problem: Referencing a sub-flow instead of a top-level flow.

Solution: Ensure topLevel: true is set on the flow.

3. Keycloak Version Compatibility

Problem: Trying to use this feature on Keycloak < 24.

Result: The property is ignored; the default "first broker login" flow is used.

Solution: Upgrade to Keycloak 24+ or use per-identity-provider configuration with firstBrokerLoginFlowAlias.

Troubleshooting

Flow Not Applied

Symptom: The realm still shows "first broker login" (built-in) as the configured flow.

Diagnosis:

Check Keycloak version: Navigate to Server Info → Profile in the admin console
Verify the flow exists: Check Authentication → Flows
Check for errors in keycloak-config-cli logs

Solution:

Ensure running Keycloak 24+
Verify flow alias matches exactly (case-sensitive)
Check that the flow is top-level (topLevel: true)

Identity Provider Override

Symptom: Realm-level flow is not being used for a specific identity provider.

Diagnosis: Check if the identity provider has firstBrokerLoginFlowAlias set:

{
  "identityProviders": [
    {
      "alias": "my-idp",
      "firstBrokerLoginFlowAlias": "different-flow"
    }
  ]
}

Solution: Remove the per-provider override if you want to use the realm default:

{
  "identityProviders": [
    {
      "alias": "my-idp"
    }
  ]
}
